SZK 18U 19” 109/61/61 - dual access

2 270,00 zł
Tax excluded

Outdoor cabinet for installation on SK1 channel sump, made of sheet with Magnelis® coating.

Quantity



Shipping methods

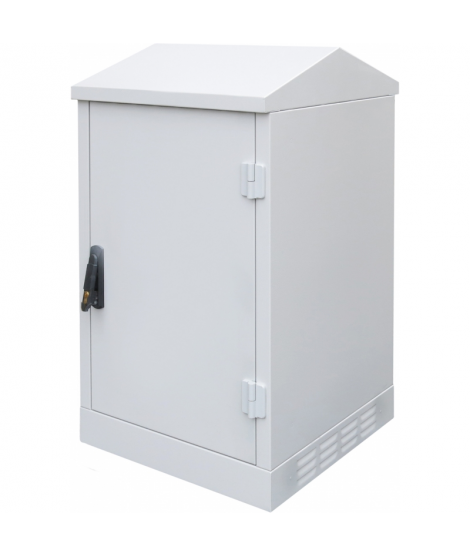

Weatherproof cabinet SZK 18U dual access is a mechanical cover for telecommunication equipment. It is made of steel sheet in light grey colour, thick structure and it is resistant to corrosion.

- Made of sheet metal with Magnelis® coating 1,5 mm thick.

- Lockable with a 3-point bolt lock with a padlock bolt, swing handle.

- Easy access to the interior of the cabinet, comfortable installation of equipment and its use, thanks to an additional door at the back of the cabinet.

- Degree of protection IP53, mechanical resistance IK 10.

- Plinth made of sheet metal with a Magnelis® coating 2 mm thick, 150 mm high, with ventilation holes.

- 2 pairs of 19” rack - adjustable distance between the front and rear pair from 260 mm to 430 mm.

Please note: Heating and ventilation sets shown in the pictures are not part of the set!


The design of the SZK 18U two-access cabinet complies with the essential requirements of the 2014/35/EU Low Voltage Directive (LVD) .

The cabinet meets the requirements of the following harmonized standards:

• PN-EN 62208:2011 Empty enclosures for low-voltage switchboards and controlgears

• PN-EN 61439-1:2011 Low voltage switchgears and controlgears

• PN-EN 60529:2003/A2:2014-07 Degrees of protection provided by enclosures (IP Code)

• PN-EN 62262:2003 Degrees of protection against external mechanical impacts provided by casings of electrical equipment (IK Code)


Additional equipment:

- Heating set with thermostat,

- A set for ventilation of cabinets with a thermostat,

- Floor plate with the possibility of making cable holes,

- 19” 1U 340 mm shelf,

- PS 19” 1U SC SX / DX pull-out,

- PS 19” 2U SC DX pull-out,

- 3U voltage distribution panel.

Due to the dimensions and weight, transport on a pallet. We do not make pallet shipments cash on delivery.

If you order more than 1 pc, please contact us for an individual valuation of transport costs.


If you have any questions or doubts, please do not hesitate to contact us on: sprzedaz@mantar.com.pl


Data sheet

Height
1138 mm
Width
610 mm
Depth
610 mm
Weight
58 kg
Sheet
1.5 mm
Colour
RAL7035 light gray, powder coated, structure: thick
Optimal method of packing
1 pc on a pallet

Download

SZK 18U 19” dual Scheme

Download (1.29M)

[ENG] Product data SZK Dual

Download (1.86M)

Deklaracja SZK Dual

Download (65.42k)
