SZK 18U 19" 113/61/89 with air conditioner

Request for price

Outdoor cabinet for installation on SK1 channel sump. Weatherproof, made of sheet with Magnelis® coating.

PS 19” 2U W np
Shelf 19" 1U d 340 mm
PS 19” 1U 24xSC np


Shipping methods

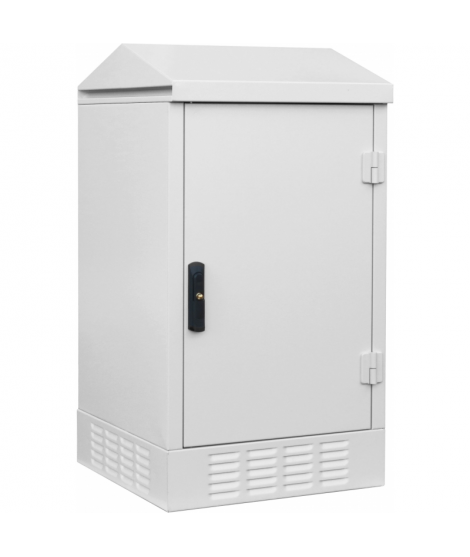

SZK 18U 19” cabinet is a mechanical cover for telecommunication equipment. It is made of steel sheet in light grey colour, thick structure and it is resistant to corrosion.

- Made of sheet metal with Magnelis® coating 1,5 mm thick.

- Lockable with a 3-point bolt lock with a padlock bolt, swing handle.

- Degree of protection IP65, mechanical resistance IK 10 (confirmed by test report No. B/2016/356).

- The cabinet has a double sheath made of sheet metal - internal sheet metal wall with Magnelis® coating 1 mm thick.

- The upper and lower parts are connected with a 150mm high grommet.

- Plinth made of sheet metal with a Magnelis® coating 2 mm thick, 150 mm high, with ventilation holes.

- 2 pairs of 19” rack - adjustable distance between the front and rear pair from 260 mm to 430 mm.

The cabinet is equipped as standard:

- 640W air conditioner (voltage: 230V) manufacturer: TEXA model: EMO06BM1B,

- 3 voltage distribution panel,

- Heating set consisting of a semiconductor blower CSL028 250W controlled by means of an electronic hygrotherm ETF-012,

- Additional thermostat-controlled fans installed in the roof.


Additional equipment:

- Shelf 19” 1U,

- PS 19” 1U 24xSC Simplex/Duplex pull-out,

- PS 19” 2U 48xSC Duplex SC Duplex pull-out.

Due to the dimensions and weight, the cabinet is transported on a pallet.

If you order more than 1 pc, please contact us for an individual valuation of transport costs.


If you have any questions or doubts, please do not hesitate to contact us on: sprzedaz@mantar.com.pl


Data sheet

Height
1160 mm
Width
610 mm
Depth
890 mm
Weight
110 kg
Sheet
1.5 mm
Colour
RAL7035 light gray, powder coated, structure: thick
Optimal method of packing

Download

[PL] Karta katalogowa SZK Klima

Download (613.74k)

[ENG] Product data SZK AC

Download (613.42k)

SZK 18U 19" 113/61/89 Scheme

Download (1.39M)
