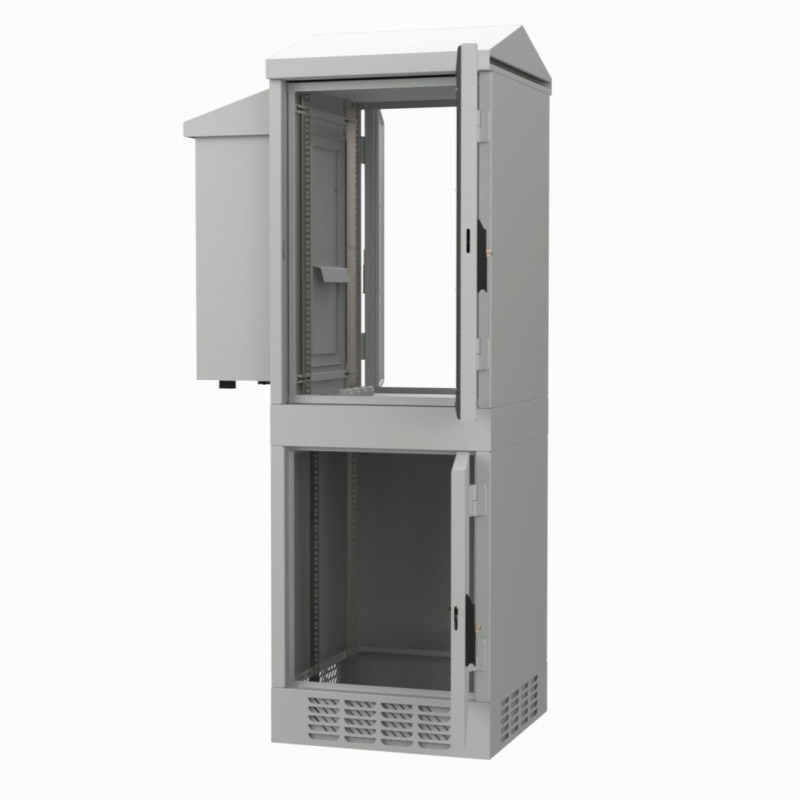

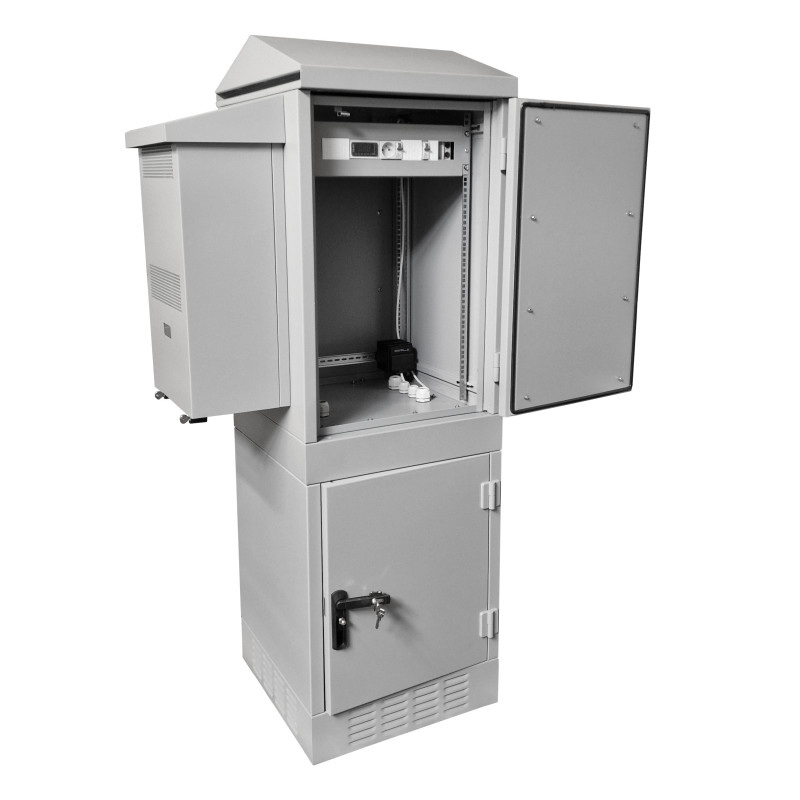

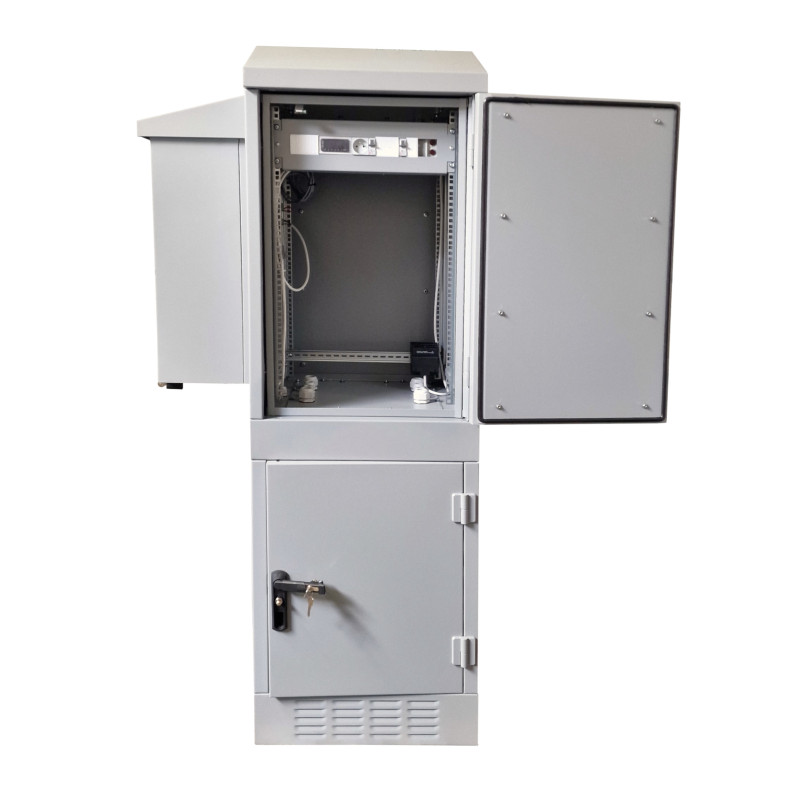

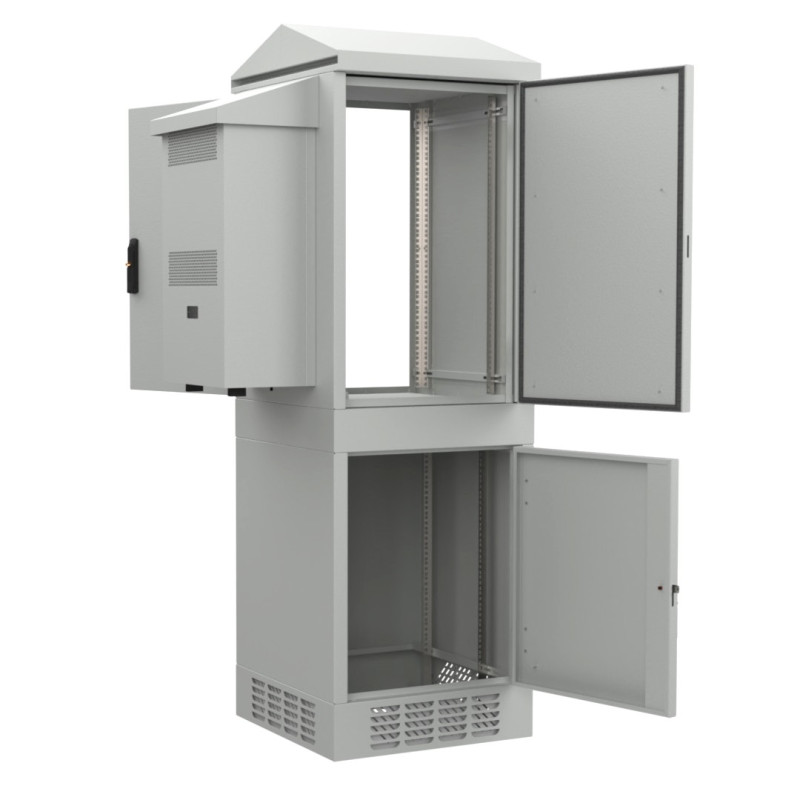

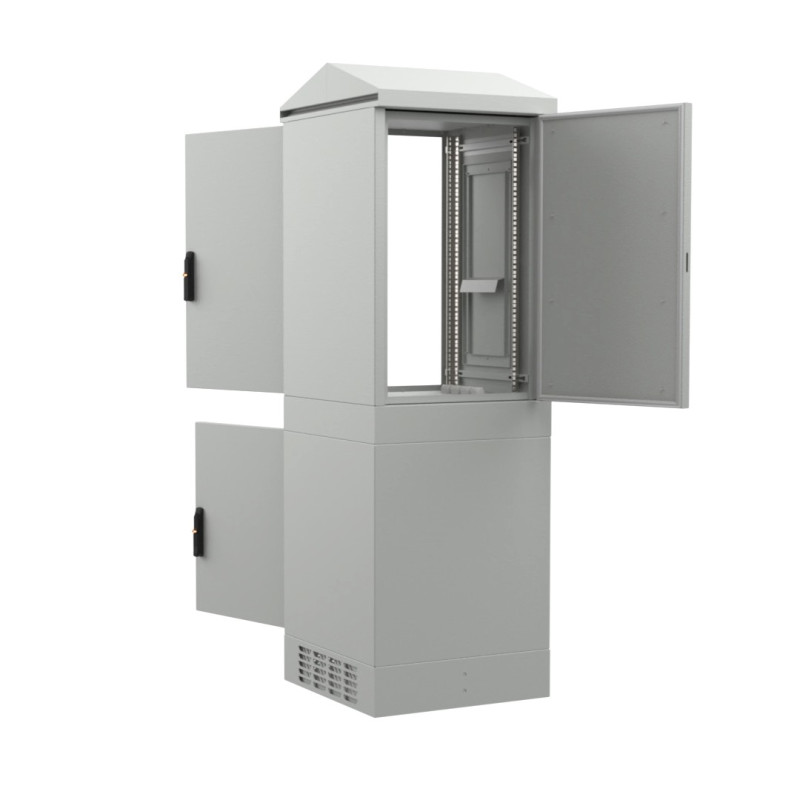

SZK 32U 19" (18U+14U) with air conditioner

SZK 32U 19” (18U+14U) modular outdoor cabinet. Made of light gray Magnelis® sheet metal with a thick structure. Suitable for mounting on an SK-1 sewer pit.

- Made of 1.5 mm thick Magnelis®-coated sheet metal.

- Powder-coated in light gray RAL 7035.

- The cabinet has a double sheet metal shell – the inner wall is made of 1 mm thick Magnelis®-coated sheet metal.

- 2 mm thick Magnelis®-coated sheet metal plinth, 150 mm high, with ventilation holes on three sides. Covered with a filter mat.

- The upper 18U section, with a double-walled, dual-access design, is equipped with a 720W air conditioner (on the side of the cabinet), a voltage distribution panel, a hygrotherm, a 250W heater, and fans. The door has a poured gasket. It has an IP65 rating and an IK10 mechanical resistance.

- The lower 14U section, with a single-walled design, has an IP54 rating and an IK10 mechanical resistance.

- The door is locked with a 3-point deadbolt lock with a padlock pin, a swing handle, and a locking cylinder.

- Both sections of the cabinet are equipped with two pairs of 19" rack mounts - adjustable distance between the front and rear pairs from 260mm to 430mm, and the distance between the front of the cabinet and the first pair of racks from 56mm to 174mm.

ADDITIONAL ACCESSORIES (OPTIONAL):

- Floor plate (for the lower section),

- Ground-mount pedestal,

- Heating kit with thermostat,

- Cabinet ventilation kit with thermostat,

- Adhesive LED lamp,

- Door opening sensor.

Cabinet can be modified to other dimensions
